#1
|
||||
|
||||
Started Phase II (Wiring & Dash)
Well,
I bit the bullet and cut my old Tach wires. Drilled the holes and flush mounted my new fishfinder. Once that was in I decided that the black plastic dash needed to come of and get the holes filled and painted. I'm going to try and fill the old screw holes with epoxy.
__________________
If your not living on the edge.....your taking up space.
|
|
#3
02-03-2006, 06:22 PM
|
||||
|
||||
|
Re: Started Phase II (Wiring & Dash)
All those old dashes are junk, most of the time. If you can't get starboard, you can use 1/4 plex glass, colored if you can get it or paint the under side color of choice.
Or leave clear and add some pretty lights under for night effects.
__________________
1986 V20  Old Fishermen never die, we just SMELL that way!!
|
|
#4
02-04-2006, 12:12 PM
|
||||
|
||||
|
Re: Started Phase II (Wiring & Dash)

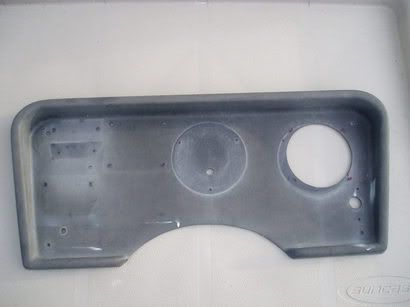

Here's some pics, I didn't get any real good befor pics of the dash.

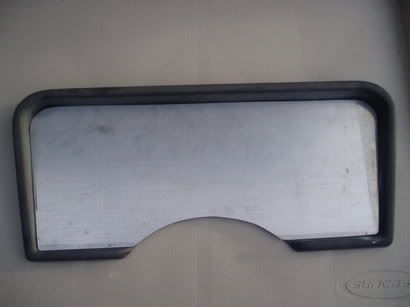

 I cut out a piece of alluminum to set inside the original black dash. I am going to paint the insert white and leave the original dash black, it will give it kind of an eyebrow/border look.
__________________
If your not living on the edge.....your taking up space.
|
|
#6
02-12-2006, 11:06 PM
|
||||
|
||||
|
Re: Started Phase II (Wiring & Dash)
I got around to mounting my dash and drilling some holes to mount my gauges this weekend. I'm going to install a small Ritchie sport dash mount compass in the hole over the port side fuel gauge. I'm still waiting on my switch panel and volt meter to come in. The volt meter is going next to the trim gauge on the new dash.
__________________
If your not living on the edge.....your taking up space.
|
|
#7
02-13-2006, 02:59 PM
|
||||
|
||||
|
Re: Started Phase II (Wiring & Dash)
Thats shaping up real nice
__________________
Willy 1986 V20 Old School 1992 V20 1992 150 Yamaha 1997 HydraSport 2250 Vector 2009 17' G3 Outfitter "G Spot" http://www.youtube.com/watch?v=TDebw...eature=related "I won't be wronged, I won't be insulted and I won't be laid on a hand on. I don't do these things to others and I require the same from them" JW
|
|
#8
02-14-2006, 02:13 AM
|
||||
|
||||
|
Re: Started Phase II (Wiring & Dash)
Looks real nice!!
I don't have a compass, but I have thought about it one time? *::) Any how, I would think installing one in the dash like that would it be off buy all the metal and eletronics in the dash?? I also have heard of a remote compass, were the compass is in the dash and there is a sencor in the bow that sends a signal to the dash?? I have heard that you can have then adjusted?? Just thinking out loud.
__________________
1986 V20 Old Fishermen never die, we just SMELL that way!!
|
|
#9
02-14-2006, 02:34 AM
|
||||
|
||||
|
Re: Started Phase II (Wiring & Dash)
Thats a good thought though MJ and I would mount it elsewhere
__________________
Willy 1986 V20 Old School 1992 V20 1992 150 Yamaha 1997 HydraSport 2250 Vector 2009 17' G3 Outfitter "G Spot" http://www.youtube.com/watch?v=TDebw...eature=related "I won't be wronged, I won't be insulted and I won't be laid on a hand on. I don't do these things to others and I require the same from them" JW
|
|
#10
02-14-2006, 10:04 AM
|
||||
|
||||
|
Re: Started Phase II (Wiring & Dash)
Hey Shicks...dash lookin' GREAT, Man...do be careful 'bout that compass, though... ;)
__________________
'74 V-20/ BF 150 '95 V-21/ BF 150 '84 V-20/ 200 2.4 Merc '87 V-20/'18 F150 Yamaha
|
 |
|
|
