#1
|
||||
|
||||
Fuel fill vent
I have a 75 v20 with 20 gall. saddle tanks, I am getting water in my fuel vent in rough conditions. any suggestions on how to correct the problem. FYI when I redid my tanks I mounted vents with the screens facing down. i did not put a clamshell cover, should I have?
__________________
Tight Lines !! Last edited by Joker2; 07-09-2016 at 06:20 AM.
|
|
#3
07-09-2016, 09:28 AM
|
|||
|
|||
|
Did you route the hose from the vent upwards towards the gunwale before turning downwards to the fuel tank? It's like installing an inverted p-trap. Also, have the vent angled at 45 degrees toward the stern.
__________________
-Steve "Oar Chasm!" 1977 Wellcraft V20 Step OB cuddy. 1971 1350 Merc "Any damn fool can navigate the world sober. It takes a really good sailor to do it drunk." - Sir Francis Chichester
|
|
#4
07-09-2016, 12:39 PM
|
|||
|
|||
|
I here they have I vent fitting with a one way check valve Are they any good ?
__________________
love to fish
|
|
#5
07-09-2016, 03:43 PM
|
||||
|
||||
|
When I had my 75, I moved the vents up to stop fuel from leaking, andput clam shells over the vent to stop the water tfrom going in under way!!
http://www.ebay.com/itm/SEACHOICE-SS...5SljiK&vxp=mtr
__________________
1986 V20  Old Fishermen never die, we just SMELL that way!!
|
|
#6
07-09-2016, 04:07 PM
|
||||
|
||||
|
Check valve in a vent would be bad... It needs to relieve both pressure AND vacuum.
|
|
#7
07-09-2016, 08:11 PM
|
||||
|
||||
|
My vent has a full loop in it. Should it just be a hump like an upside down p trap?
__________________
1999 Wellcraft 22WA-200 Ocean Runner 1982 Grady White Tarpon 190-110 Evinrude-Sold 1996 Striper 2100WA-RIP Sandy 1989 Wellcraft 18-Sport-125 Force-sold
|
|
#8
07-09-2016, 10:01 PM
|
||||
|
||||
|
Yes... A full loop will hold liquid in the bottom
|
|
#9
07-09-2016, 10:34 PM
|
||||
|
||||
|
It's funny my fuel vent, bilge pump, and fishboxes drain hoses all had full loops in them. I took care of the drain hoses already but when I changed the vent hose I put it back the way it was. I'll fix that tomorrow. Glad I saw this thread since I plan on taking my boat to the marina tomorrow.
__________________
1999 Wellcraft 22WA-200 Ocean Runner 1982 Grady White Tarpon 190-110 Evinrude-Sold 1996 Striper 2100WA-RIP Sandy 1989 Wellcraft 18-Sport-125 Force-sold
|
|
#10
07-10-2016, 05:50 AM
|
||||
|
||||
|
Do like MJ said.

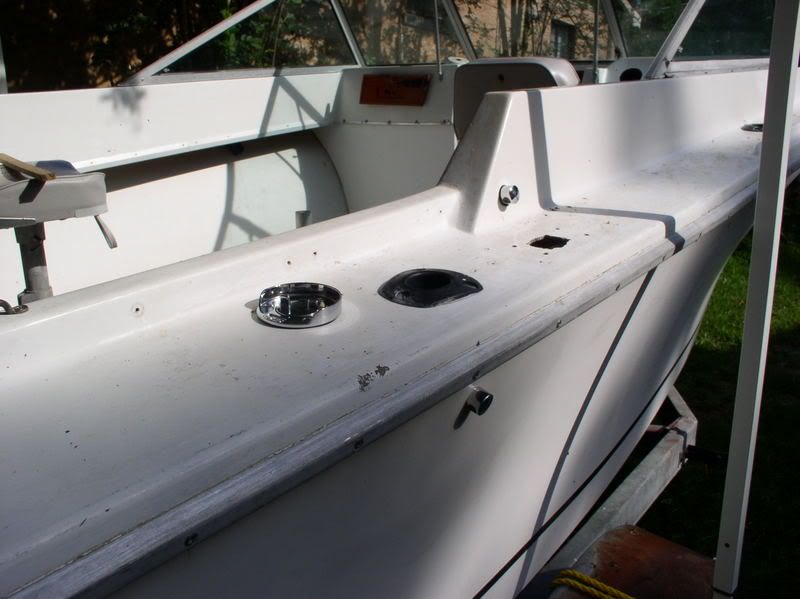

Make the new locations above the rub rail and just leave the old ones in place so you don't need to patch the holes.
__________________
 '75 Cuddy with '00 Johnson Ocean Pro 150 horse Benny Last edited by tsubaki; 07-10-2016 at 09:33 AM.
|
 |
