Mounting fish finder x-ducer
I have installed my new fishfinder - A Garmin 160 and I am looking for opinions on where to place the transducer on the transom for the best results. I have attached a few pictures which show where I had the previous x-ducer mounted (red circle). I never got good results from it on plane, but it was a cheap unit, so I don't know if the x-ducer placement had much to do with it. Any opinions / recomendations are appreciated.

__________________
1978 V-20 Steplift 1988 Mercury 150HP
|
|
#2
05-13-2008, 10:22 PM
|
||||
|
||||
|
If it were me, I would move it over to the left a little and put it behind the strake. This way it would be reading a flatter stream of water instead of having the water hitting it at an angle and possibly creating turbulence.
__________________
2011 SUNDANCE B20CCR SKIFF, 2011 YAMAHA 90HP 4 STROKE, 2011 KARAVAN SINGLE AXLE ALUMINUM TRAILER, LOWRANCE ELITE-7 HDI, MINN KOTA RIPTIDE TROLLING MOTOR 2000CC HYDRA-SPORT 225+HP EVINRUDE SOLD  AND THE PINK JEEP!!!! R.I.P. http://www.wellcraftv20.com/communit...ad.php?t=11664
|
|
#3
05-13-2008, 10:25 PM
|
||||
|
||||
|
I mounted mine where Ferm was talking about, a little to left right were the blue streak hits the flat spot. I have had mine on plane and had no problems with readings.
This also makes it easier to adjust to level and get the water line centered since you can hold a level against the bottom of the hull and have a straight line to adjust too.
__________________
1984 V-20 Center Console 1985 90 hp Merc. American by birth, Southern by the grace of GOD. Never let your hobby become a job but rather let you job become your hobby. http://www.wellcraftv20.com/gallery/turbine_doc_84_cc
|
|
#4
05-14-2008, 12:38 AM
|
||||
|
||||
|
I had my Garmin 160 in the place you have in red.
I had same results, at slow speed and drit it was great, could watch your line jigging off the bottom! But get going on plain and gone! Sometimes it worked and sometimes not?? Try were they say, might be fine? won't know unless you try!
__________________
1986 V20  Old Fishermen never die, we just SMELL that way!!
|
|
#7
05-14-2008, 05:02 PM
|
||||
|
||||
|

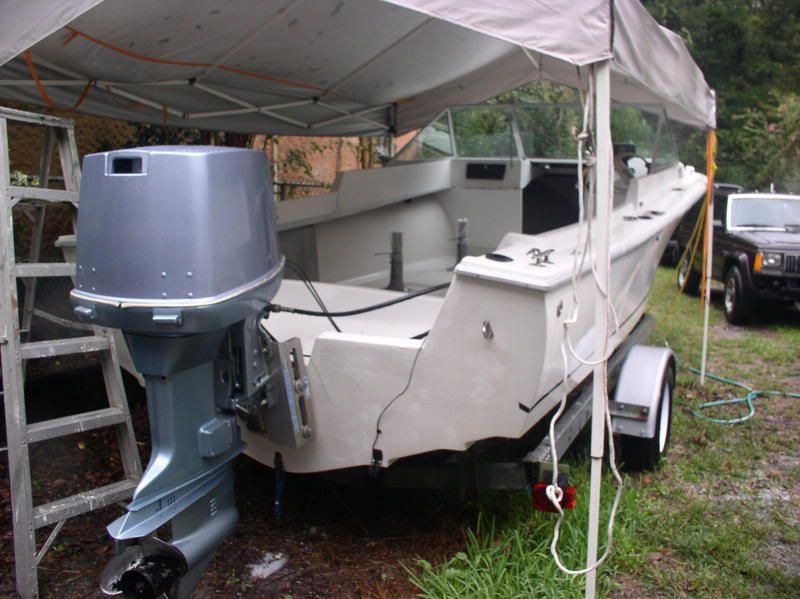

Here's where mine is mounted. Works good here. The one on the left is for the speedometer.
__________________
Formerly - 89 cuddy 165hp I/O and 95 V21 / 150 Honda When the people fear their government, there is tyranny; when the government fears the people, there is liberty. - Thomas Jefferson
|
|
#8
05-14-2008, 08:10 PM
|
||||
|
||||
|
__________________
1984 V-20 Center Console 1985 90 hp Merc. American by birth, Southern by the grace of GOD. Never let your hobby become a job but rather let you job become your hobby. http://www.wellcraftv20.com/gallery/turbine_doc_84_cc
|
|
#10
05-14-2008, 08:24 PM
|
||||
|
||||
|
2 things: If you put trim tabs on then I doubt if any transom mount will work on plane. I have a I/O with trim tabs and my would not work anywhere on the transom, because of the Turbulence; I opted to install a thru hull 20dg offset. It works all the time, on plane or idling.
Just my 1 1/2 cents worth, (I'm not rich enough for 2 whole cents).
__________________
Tis better to be quiet and thought a fool than open your mouth and prove it!! 1991 V-20 cuddy I/O 350 volvo duo prop, 1998 15ft Grumman 9.9 Johnson
|
 |
