New Dash For The 21
I didn't trouble-shoot any of them cause I knew all the gauges were gonna go...I wanted to have the sonar built in so a new dash was required...last night, in the cool of the evening, I tore out the old...

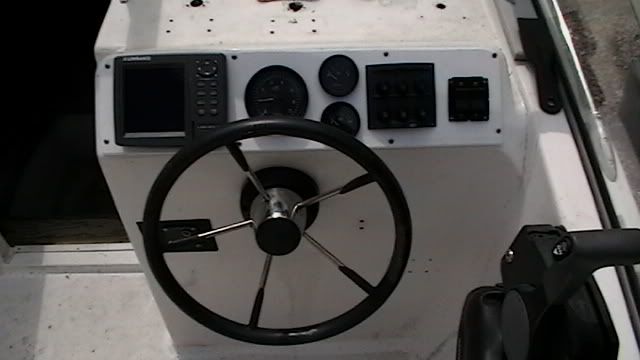

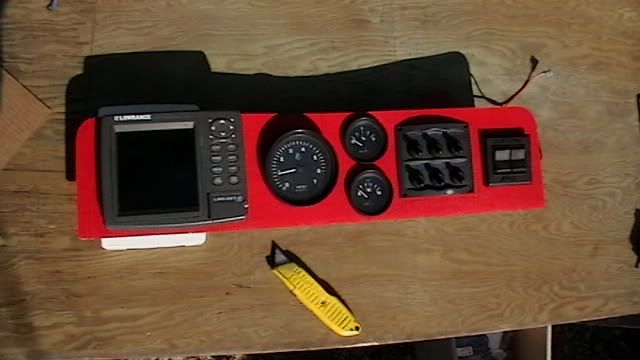

 Labeled all as I went thru...today decided on the new layout and went at it...first a template to make sure it would all work...  Anything white showing thru the red got cut away...fit all the stuff into the template...  It all lined up pretty good, so went ahead and whacked a new one outta 1/4" Starboard..had to remove the wheel to saw the dash, so went back w/my old one from the '74...   Still gotta get behind there and rewire everything...hopefully tomorrow, but things are still movin along...oh and to catch up on some earlier business, had the shaft on the Minn Kota lengthened and got it mounted the other day...preceded by cutting away the center section of the bow-rail...hate doin that, but just can figure a better solution...  Somebody posted some pics after shortening the legs on their bow-rail...I thought it looked GREAT and will do same later, but right now, I gettin what's GOTTA be done to GO FISHIN!!...
__________________
'74 V-20/ BF 150 '95 V-21/ BF 150 '84 V-20/ 200 2.4 Merc '87 V-20/'18 F150 Yamaha
|
|
#2
04-17-2010, 07:18 PM
|
||||
|
||||
|
Not much left to do is there? .....gettin' er done!!!
__________________
1986 V-20 1986 Yamaha 150 HP
|
|
#4
04-17-2010, 08:20 PM
|
||||
|
||||
|
Quote:
Yeah...everytime I start to think that, a LIST as long as my arm jumps out...the sonar still needs GPS antenna installed/wired, temp sensor installed/wired and transducer installed/wired...hydraulic hoses to trim-tabs installed (pump's in) and wires pulled to dash, nav lights...and on and on...whew!!...it'll get done...I gotta FISH  Hey Phat...template is cardboard from one of the kid's old high-school science projects
__________________
'74 V-20/ BF 150 '95 V-21/ BF 150 '84 V-20/ 200 2.4 Merc '87 V-20/'18 F150 Yamaha
|
|
#5
04-17-2010, 08:36 PM
|
||||
|
||||
|
You do good work my friend, very nice
__________________
Willy 1986 V20 Old School 1992 V20 1992 150 Yamaha 1997 HydraSport 2250 Vector 2009 17' G3 Outfitter "G Spot" http://www.youtube.com/watch?v=TDebw...eature=related "I won't be wronged, I won't be insulted and I won't be laid on a hand on. I don't do these things to others and I require the same from them" JW
|
|
#6
04-17-2010, 08:46 PM
|
||||
|
||||
|
Quote:
__________________
'74 V-20/ BF 150 '95 V-21/ BF 150 '84 V-20/ 200 2.4 Merc '87 V-20/'18 F150 Yamaha
|
|
#7
04-17-2010, 10:30 PM
|
||||
|
||||
|
Beautiful job. I like the layout. Well Done!!
__________________
1987 V20 w/1987 150HP Yamaha on a Shoreland'r Trailer 1978 16.5 Airslot w/1996 120HP Force on a Four Winns trailer 1996 V21 w/1993 200HP Mercury on a Shoreline Trailer All towed by a 5.7L Hemi Durango. If God didn't have a purpose for us we wouldn't be here, so Live simply, Love generously, Care deeply, Speak kindly. (Leave the rest to God)  Silence, in the face of evil, is itself evil. Not to speak is to speak, not to act is to act. God will not hold us guiltless.
|
|
#9
04-18-2010, 10:12 AM
|
||||
|
||||
|
Reel-
I probably missed it on one of the threads but what did you end up doing about the shaft length on the Honda? I remember you weren't sure if you were going to jack plate it or try and extend the one you had. -Svence
__________________
1984 V-20 Steplift 1998 Johnson 175
|
|
#10
04-18-2010, 10:40 AM
|
||||
|
||||
|
You be pimpin' out da dash wit da starboard stuff..............
Nice job looks great.............
__________________
1974 Wellcraft V-20 Center Console 1999 Mercury 150 HP Bluewater 1975 Wellcraft V-17 1977 Evinrude 70 HP Restoration Thread http://forums.iboats.com/showthread.php?t=404584 Enfield Connecticut Civil War Veterans Graves and History Pages http://enfieldwargraves.smugmug.com My companion book I authored http://www.blurb.com/books/1137672
|
 |
|
|
