#1
|
||||
|
||||
Electronics Panel, Lights, Stereo

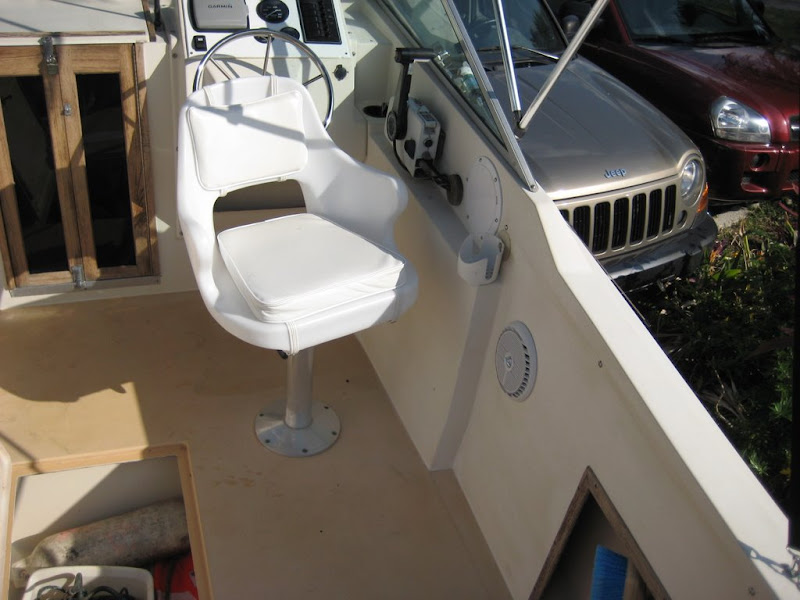

So I spent the majority of last Thursday over hauling the electronics on my new V-20. First up was a new dash panel. I picked up all new gauges, teleflex amega, Voltmeter, Fuel Gauge, and Tach with System Check. Added a new switch panel and flush mounted the GPS. I was pretty happy with the results, all went well minus one routing error on the bottom right.... :(

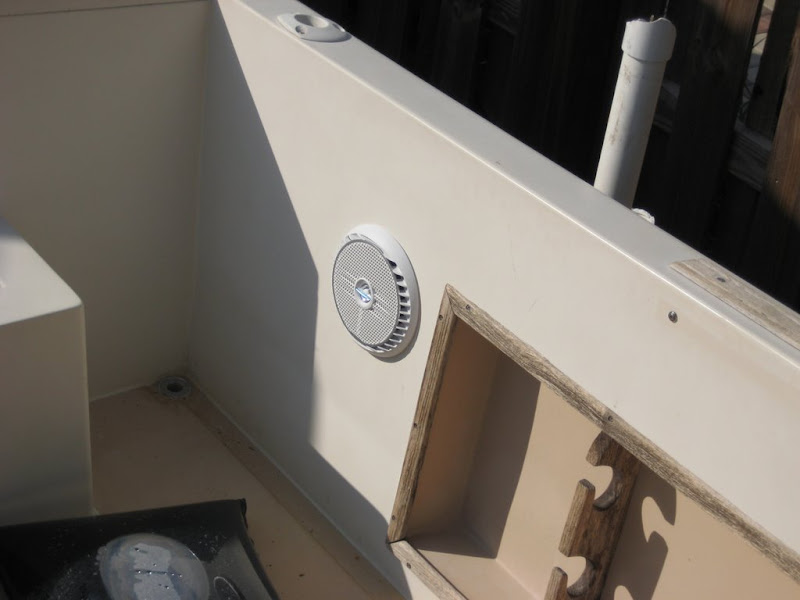

 Then I added a new Clarion 4 channel amp and 4 Infinity 602M's. WOW!! They sound awesome. I was totally surprised at how loud and clear they can get. (sorry no pics of the amp install, its mounted on the starboard side in the cabin)   Lastly I added four LED strips in the rod boxes for deck lighting. I picked up 9" waterproof strips from superbrightleds.com for only $7 a strip. The pics are blury but you get the idea.  I also added a ACR and changed out the battery switch for one of the blue seas off-on-combine switches. Hopefully that should keep everything juiced up for me. -Svence
__________________
1984 V-20 Steplift 1998 Johnson 175
|
|
#3
04-28-2008, 12:19 PM
|
||||
|
||||
|
Really nice work there Svence.
__________________
 1990 Hydrasports 2000cc Vector with 96 200HP Oceanrunner. Saved by grace alone, through faith alone, in Christ alone http://www.providencerpchurch.com/
|
|
#4
04-28-2008, 06:10 PM
|
||||
|
||||
|
Looking good!! I am going to be putting a new system in mine next year, I am thinking of installing all in the Electronics box on the hard top.
__________________
1986 V20  Old Fishermen never die, we just SMELL that way!!
|
|
#6
04-28-2008, 07:11 PM
|
||||
|
||||
|
Yes on the new boat the GPS and Fish Finder are on the dash!! The box I got cheap and thought I would use it as a catch all, but now like you say it woud be great for the VHF and Music.
__________________
1986 V20 Old Fishermen never die, we just SMELL that way!!
|
|
#7
05-02-2008, 06:02 AM
|
||||
|
||||
|
Good job csvencer !!!
Congrat`s On A Fine Job !!!!
__________________
Make the habit of radio-checking your VHF, and use it. Father God is too busy to come down to help you himself, He sends His Angels. They have no wings, They are just your true friends.
|
|
#8
07-05-2008, 09:35 PM
|
|||
|
|||
|
Your dash looks great. I'm planning a very similar setup. Does the gps proximity to the compass effect the compass? I was concerned because I was playing around with relocating the vhf near there and the compass would swing around and follow the radio.
__________________
2005 Grady White Tournament 225 with a 2011 Yamaha f250
|
|
#9
07-06-2008, 10:55 AM
|
||||
|
||||
|
I can't really tell...the compass has lost all of its oil so it bobs and weaves way too much. I know it says the right direction (N E S W) when I am sitting still, but not sure how accurate it is. Once I got the GPS I never look at the compass anyway.
-Svence
__________________
1984 V-20 Steplift 1998 Johnson 175
|
|
#10
07-06-2008, 08:51 PM
|
||||
|
||||
|
I have been thinking about a switch panel like that one. It is a really nice and sleek design. Looks great, keep up the good work.
I am also thinking about the strip led lights, could you post a better picture so I can see how well the light the deck.
__________________
1984 V-20 Center Console 1985 90 hp Merc. American by birth, Southern by the grace of GOD. Never let your hobby become a job but rather let you job become your hobby. http://www.wellcraftv20.com/gallery/turbine_doc_84_cc
|
 |
|
|
