So I screwed up the ignition wires

[tsubaki]

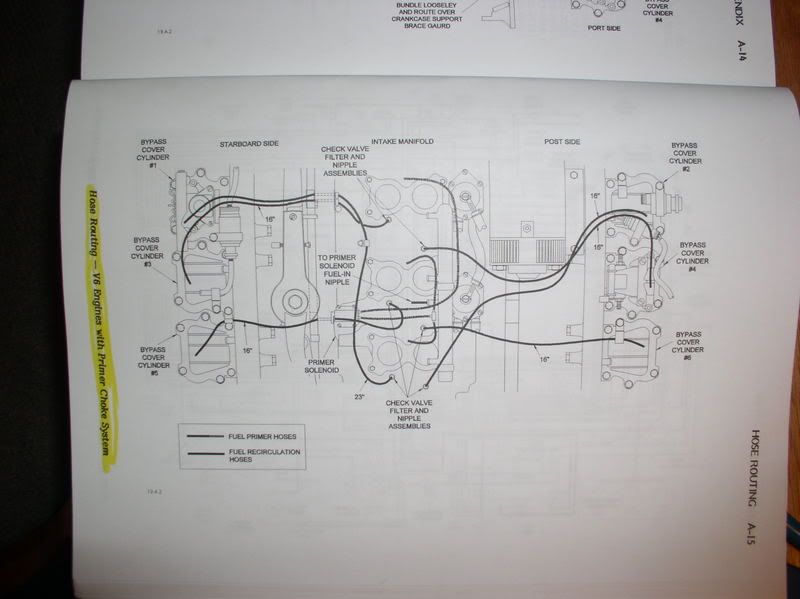

This is the hose routing for the primer (choke) system

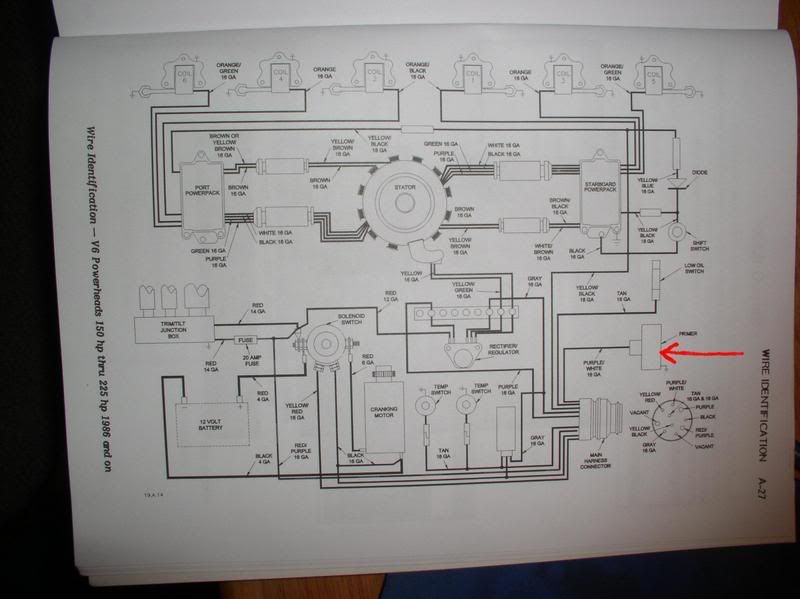

This shows the primer and wire color (purple with white tracer)

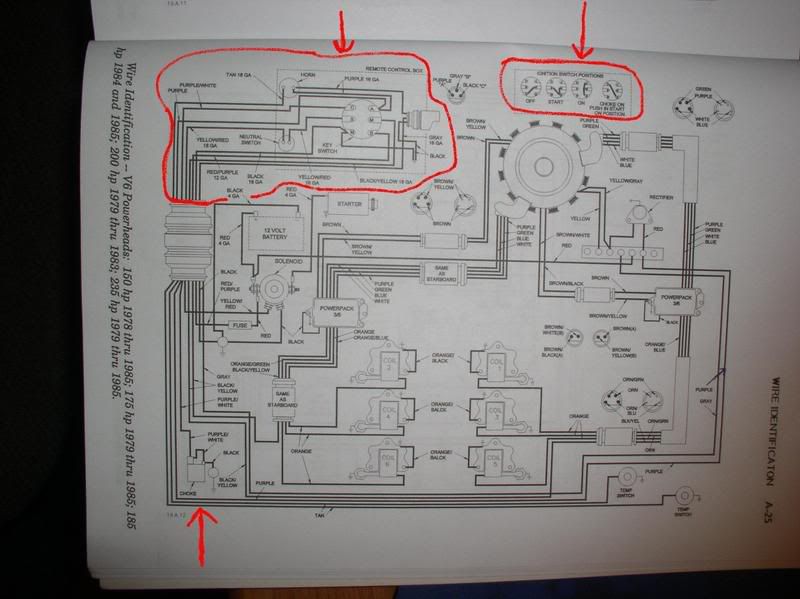

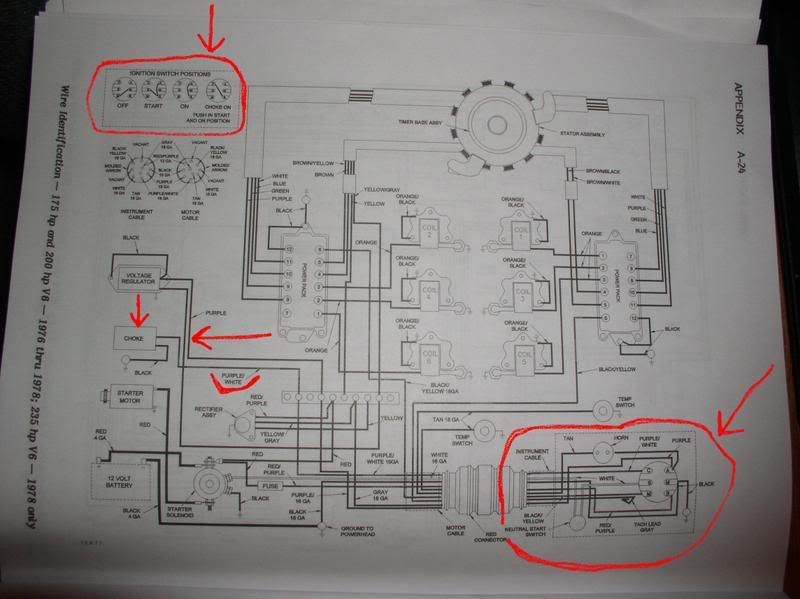

This one and the next, compare wire colors at the switch and motor harness asto what you have.

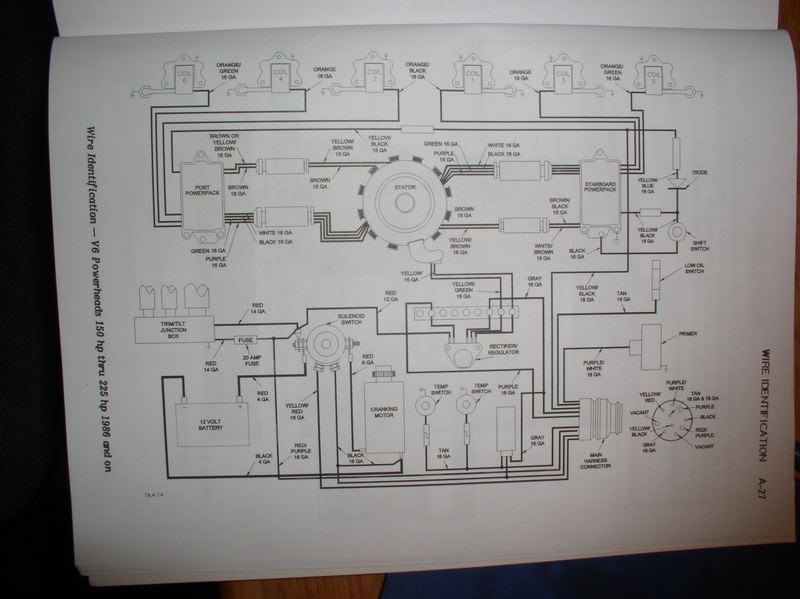

Note the ignition switches are different in the third and fourth pictures.


Give me a minute and I'll point out the stuff.

[tsubaki]

The possibility does exist that you need a different ignition switch than what you bought.
Test the old one and see if it works and how the terminals make contact at the different positions (hell it might be good).

[macojoe]

ok I went o Boaters world today and bought a stupid proff ingnition!!

Comes with all the leads in the right colors!

http://www.boatersworld.com/product/...%3Bciswitches-


But I still did not hook up the purple cause I do not know what 2 are to go on there and were the second goes to??

But boat started right up, and thats a plus!!!!!!!!

[macojoe]

I also got a new Cig lighter, new recesed handles for the hatches, (I hate them Carragie bolt handles) all new LED brake lights, eletric horn.

All installed and working today!

Just have to figure out the rest of the ingnition I be about tready for the water!!

[tsubaki]

And are the *****s (*****s, I said *****s) (try pimp girls) on board also? ;D
That's it!
Are the pimp girls on board? ;D

[macojoe]

Not yet! But soon.

I have a new Color Chart plotter coming in 2 days, have to finish off a few small things, and should be ready to dunk.

After the first dunking Iand all goes well, My son is going to give it the first and only wax job that it will ever see!!

Then its Tuna time!! they getting alot here this year!!

[tsubaki]

Not that I've been here long. But.
IS IT A RARE THING FOR MJ TO PUT WAX ON A BOAT????? ;D ;D

[macojoe]

Yes it is!! But the old owner did 1/2 the boat and it looks like crap, so My sonm going to make them match, then they can go the he!! toghter ;)

[tsubaki]

Just checking to see if you got all the wires hooked up or not.
The purple(s) could be a couple of things.
Is the tach working?
Is the overhead horn working?
Tach not working, it could be the wire for it.
Check the overhead horn by disconnecting it at the motor and with the key "on" (running isn't necessary) ground the wire from the harness to the powerhead.

[tsubaki]

That relay looking thing that has a wire missing could possibly be an overheat buzzer (horn) remote mounted.
