Trim Tab Install
Practicin' what I preach, here are some pics of the tabs from Spareparts...haven't drilled any fiberglass inna while...Ahh the smell of fresh-drilled glass in the morning!!...bout time this ol girl got some tabs/...can't wait to try 'em out!!

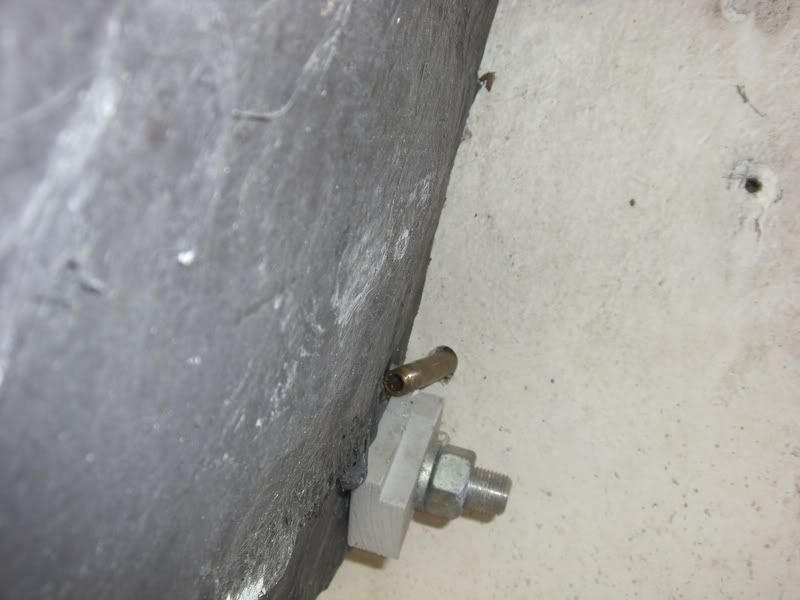

This is where Spare helped me out...the tube woulda come thru the transom into the splashwell was the problem...here it makes it thru the transom, but outside the splashwell  Spare's suggestion moved the cylinder mount on the tab over some to reposition it for inside clearance...you can see the empty hole in the lip of the tab where originally positioned...drill another hole to reposition cylinder took care of the prob...thanks Spare  Now I gotta make a new platform for the swim-platform...the tab cylinder is definately in the way to remount as original...that'll be another post soon to come...I hope!!
__________________
'74 V-20/ BF 150 '95 V-21/ BF 150 '84 V-20/ 200 2.4 Merc '87 V-20/'18 F150 Yamaha
Last edited by reelapeelin; 02-23-2009 at 09:44 AM.
|
|
#2
02-23-2009, 06:58 PM
|
||||
|
||||
|
see how far out you can slide the platform base( the white plastic part), you may be able to cut a small semi circle in the base to clear the tab. I set a whaler up once like that, it didn't look to bad
|
|
#3
02-23-2009, 07:33 PM
|
||||
|
||||
|
Quote:
__________________
'74 V-20/ BF 150 '95 V-21/ BF 150 '84 V-20/ 200 2.4 Merc '87 V-20/'18 F150 Yamaha
|
|
#4
02-23-2009, 07:42 PM
|
||||
|
||||
|
Hey Reel
My trim tabs are about inthe same place as yours, this creates alot of turbulance for your transducer (fish finder) and it may not read while underway. Mine won't work. I had to install a thru-hull about 26: fwd and on the stbd side. I already had a hole in the hull there for a water washdown. Yours may work but mine didn't. P/s I wouldn't trade my tabs, I love them.
__________________
Tis better to be quiet and thought a fool than open your mouth and prove it!! 1991 V-20 cuddy I/O 350 volvo duo prop, 1998 15ft Grumman 9.9 Johnson
|
|
#6
02-23-2009, 10:35 PM
|
|||
|
|||
|
Good job on the install REEL.
__________________
*************************************** Stay Safe!  Sold - 1984 V-20 Cuddy with a 2003 Johnson 140 hp gas sippin 4-stroke. 1995 Ranger 250C with a 2015 Suzuki 300 hp 4-stroke.
|
|
#7
02-24-2009, 07:46 AM
|
||||
|
||||
|
Quote:
Garage...thanks for the heads up on the transducer...I'll be keepin' an eye on it soon as I can get 'er back in the water... Everything in the pics is dry-fit at this point...gotta get some 4200 for final install...
__________________
'74 V-20/ BF 150 '95 V-21/ BF 150 '84 V-20/ 200 2.4 Merc '87 V-20/'18 F150 Yamaha
|
|
#8
02-24-2009, 05:53 PM
|
||||
|
||||
|
Nice you old geezer, nicely done
__________________
Willy 1986 V20 Old School 1992 V20 1992 150 Yamaha 1997 HydraSport 2250 Vector 2009 17' G3 Outfitter "G Spot" http://www.youtube.com/watch?v=TDebw...eature=related "I won't be wronged, I won't be insulted and I won't be laid on a hand on. I don't do these things to others and I require the same from them" JW
|
|
#9
02-24-2009, 06:45 PM
|
||||
|
||||
|
How many pairs of glasses were you wearin' when you drilled them holes............................................. .................................................. .................................................. ....................
 Just wonderin' how many pairs I'll need!
__________________
I have been through some terrible things in my life, some of which actually happened.
|
|
#10
02-25-2009, 07:59 AM
|
||||
|
||||
|
Quote:
 Hey Man...you catchin' any fish down there in paradise??...
