#1
|
||||
|
||||
post launch trailer rinsing system
these are some pics of a trailer rinsing system i installed on my trailer. most trailer experts say the most damage is done while you leave your tailer at the ramp for 8-10 hours with salt water drying on it.

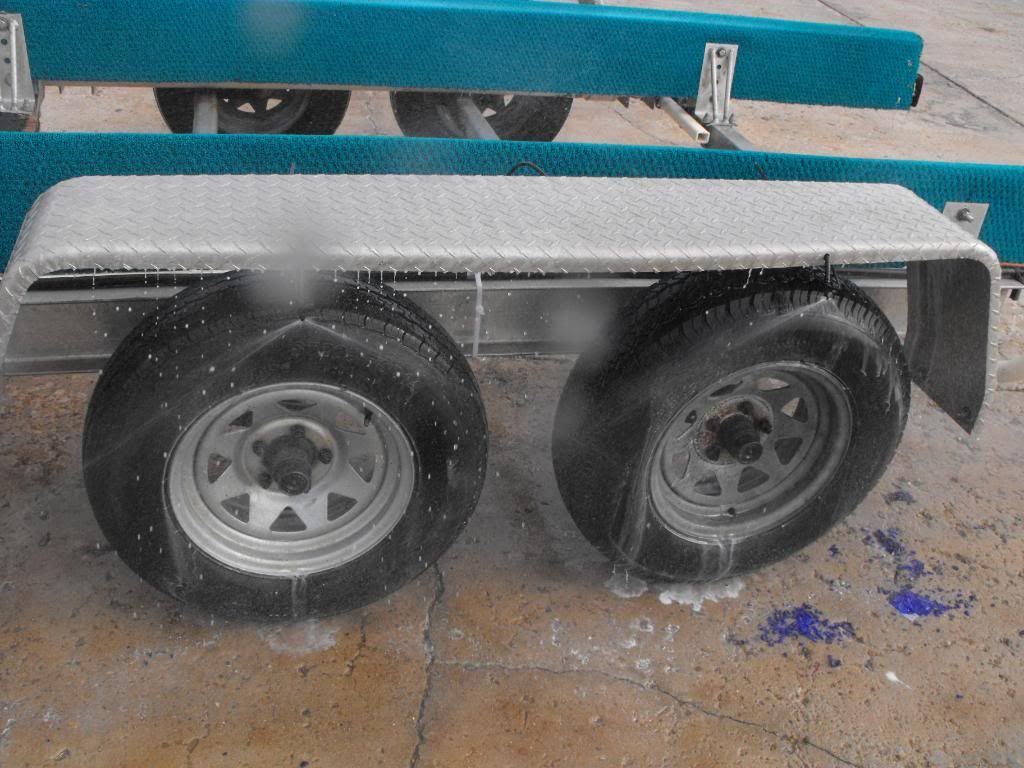

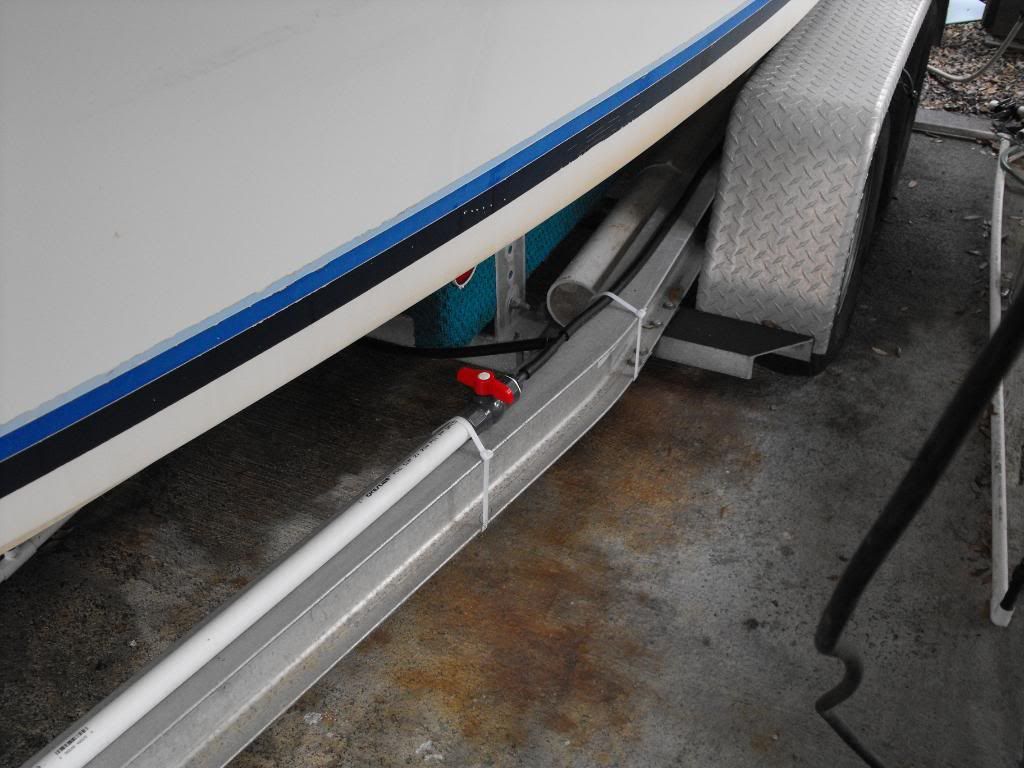

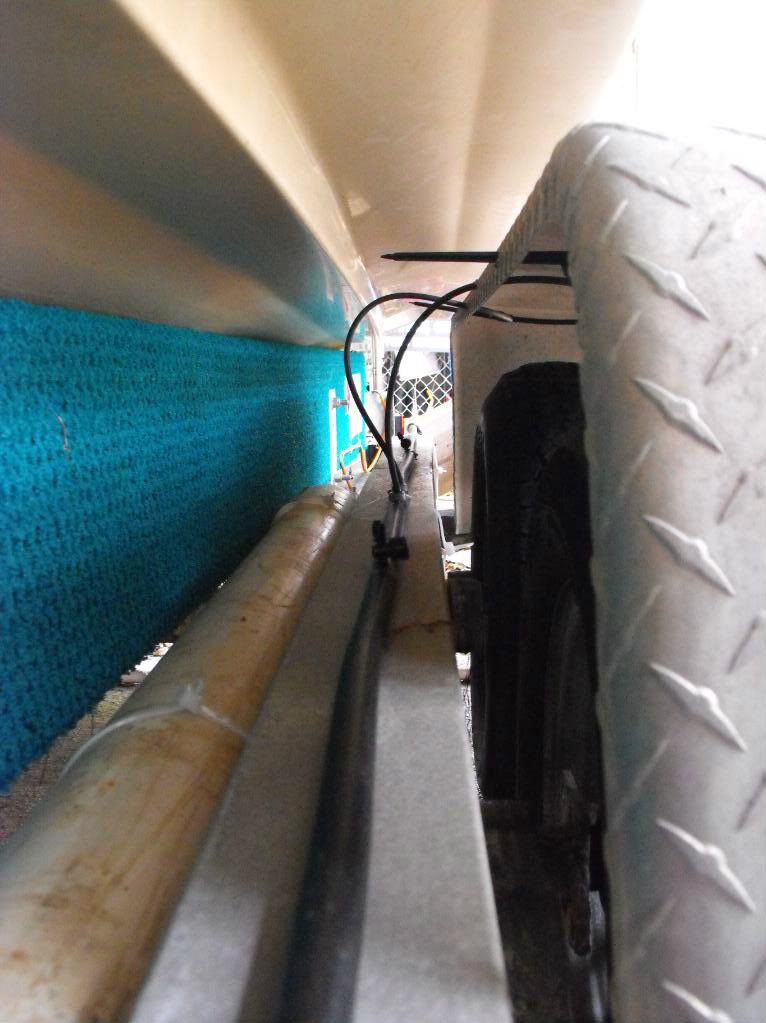

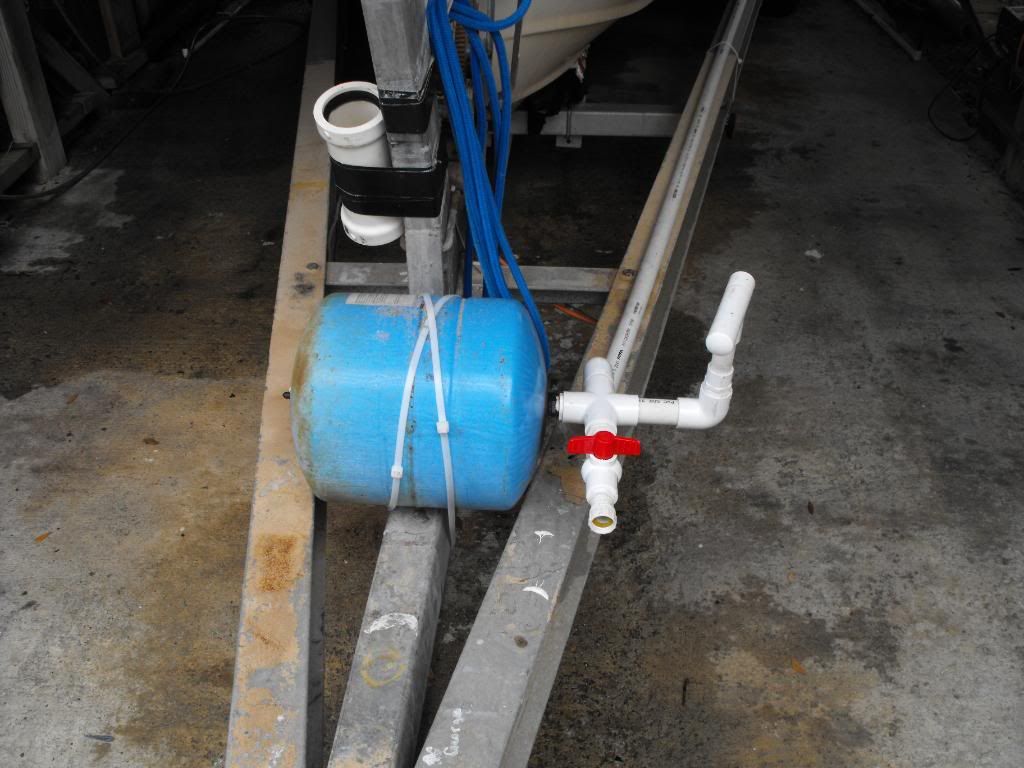

 bladder tank which holds 5-6 gallons  pipe running down the frame  flex pipe running behind wheels with sprays attached  open the valve and spray after you launch  go fishing and don't worry about your trailer
|
|
#2
03-12-2012, 08:46 PM
|
|||
|
|||
|
Good idea.
I always wash mine off after launch in saltwater. Seems to have made a difference.
__________________
*************************************** Stay Safe!  Sold - 1984 V-20 Cuddy with a 2003 Johnson 140 hp gas sippin 4-stroke. 1995 Ranger 250C with a 2015 Suzuki 300 hp 4-stroke.
|
|
#3
03-12-2012, 09:17 PM
|
||||
|
||||
|
That's one of those damn good ideas...and looks like you set it up to accept a hose when you get home...how much pressure on the tank?...
__________________
'74 V-20/ BF 150 '95 V-21/ BF 150 '84 V-20/ 200 2.4 Merc '87 V-20/'18 F150 Yamaha
|
|
#4
03-13-2012, 07:24 AM
|
||||
|
||||
|
50psi on the tank when empty w 50 psi on the water hose. you fill it at the house until it goes static. the t handle is a threaded plug where i add squirt of soap. also, when i get home and back it in the shed, i just hook up a hose and let it spray for about 10 minutes, then close both valves and it is loaded for the next trip.
i don't have brakes, but for you guys that do, you could plumb this into flush ports. the beauty of this is you get a pressurized water source to wash off your trailer with no pumps , wires, batteries, etc. and there is not anything to steal at the ramp.
|
|
#5
03-13-2012, 11:26 AM
|
||||
|
||||
|
Love the design of your self-contained rinse system. Not to mention the concrete filled PVC to keep the trailer from floating and the gussets on the bunk brackets. You sir are crafty.
__________________
 1996 -19' NV Flats 115 Mercury 4-stroke 1983 -20' Wellcraft Center Console 250 XS
|
|
#6
03-13-2012, 03:45 PM
|
||||
|
||||
|
[QUOTE=phatdaddy;186330] the t handle is a threaded plug where i add squirt of soap.
So instead of soap, you could add salt away as well...
__________________
'74 V-20/ BF 150 '95 V-21/ BF 150 '84 V-20/ 200 2.4 Merc '87 V-20/'18 F150 Yamaha
|
|
#10
03-13-2012, 09:32 PM
|
||||
|
||||
|
Damn.. I threw away a waterlogged expansion tank just like that about 2 months ago... got a brandy new one on my boiler now... <sigh> Great idea though. Nicely thought out. I usually launch in semi-fresh water and run downriver to the ocean, but there's always a trip or two to a salt water launch ramp. Might not be a bad idea. Gotta think about how to rig it up.. are those 180* irrigation nozzles?...and maybe a bigger tank. I reely like the part about washing out the brakes.
__________________
1987 V20 w/1987 150HP Yamaha on a Shoreland'r Trailer 1978 16.5 Airslot w/1996 120HP Force on a Four Winns trailer 1996 V21 w/1993 200HP Mercury on a Shoreline Trailer All towed by a 5.7L Hemi Durango. If God didn't have a purpose for us we wouldn't be here, so Live simply, Love generously, Care deeply, Speak kindly. (Leave the rest to God)  Silence, in the face of evil, is itself evil. Not to speak is to speak, not to act is to act. God will not hold us guiltless.
|
 |
|
|
