74 CC Interior Fix-Up and 1st Trip


I'm getting ready to put my 74 CC back in to shape for fishing. I decided to repaint the deck ,gunnels and topside with Pettit white epoxy paint and primer, everything is in good shape {I need to fill a bunch of screwholes} but the paint is worn thru in spots. The last owner had a OMC on it and he hacked the hell out of the mounting face of the CC I have all new gauges, helm. steering wheel,breaker panel and compass. I need some sugestions on what I can do , cut it out and replace with marine plywood ,Starboard? I need some ideas.......

Re: The Center Console Help


Starboard over the whole mess! ;) I did it to the top of my console on the CC. Check my gallery pics.

Re: The Center Console Help


Thats what I did!! Starboard all the way!

I got a piece of 1/4 white from the scrap pile at a local boat mariner, for $10

http://syncboard.com/albums/Boat-Tac...60_G.sized.jpg

Re: The Center Console Help


Little blurry, but I used a piece of 1/4 starboard. *No motor on this boat right now, so still no guages.http://www.wellcraftv20.com/gallery/...0113.sized.jpg

Re: The Center Console Help


Across the top under the compass, GPS, and FF. It was an awful mess! :o
http://img.photobucket.com/albums/v1...ellcraft_4.jpg

Re: The Center Console Help


Did you cut out a large part of the top or is the starboard just laided over the top, and what thickness is it and can you mount the helm on it with just the starboard....

Re: The Center Console Help


I used 1/2" thick material laid right over the top. Just made sure the surface was smooth. Yes, you can mount the helm right onto the Starboard. 1/2" would be plenty strong enough for that.

Re: The Center Console Help


Thanks for th info I'm off to buy it this morning. Going to start the work tommorrow and I'll post some pictures of the progress......

Re: The Center Console Help


I love Starboard!!!!!!!!!!!!!!!!! ;)

I think I am going to make a Starboard wife?? :-*

Re: The Center Console Help


CB, your CC looks great...musta broke your heart :'(...

MJ...that Starboard wife thing...just remember the HEAT EXPANSION thing :o...

Blu, Starboard's the deal...here's what I did to mine...
http://i3.photobucket.com/albums/y90...eelin/dash.jpg

Re: The Center Console Help


The starboard looks nice I went to the shop and bought the stuff today and I have to pick it up Monday they will cut to size for me. I didn't have a router but on the way there I stopped at a estate sale and got a nice Craftsman router for ten dollars. I got the 1/4 round bit from Sears I'm ready for this project now,Thanks guys nice work.....

Re: The Center Console Help


Hey, Blu...play w/the depth on that router-bit B4 you do final round-over...If you leave it just a HAIR deep, it'll leave a nice ''reveal'' or sharp shoulder above the round...I like the way it looks, but you may not...get your final cut-outs made and sand edges REEL smooth...practice on some scrap 1st... ;)...

Oh yeah...counter-sink those screws, too...

Re: The Center Console Help


I corresponded with Blu via e-mail last night and gave him a more detailed explaination of routing and countersinking holes and general fabrication. I think he'll do well. ;)
Give it hell Blu ;D 8)

Re: The Center Console Help


CB, hope you impressed upon him the importance of PICTURES!!... ;D ;D ;D...

Re: The Center Console Help


I didn't. Must be slipping. This one's for you RAP;
http://img.photobucket.com/albums/v1...3-postpics.gif
http://img.photobucket.com/albums/v1...endanceprv.gif
http://img.photobucket.com/albums/v1...4_emM8_prv.gif

Re: The Center Console Help


OH YOU DID!!!!!!!!!!!!

Re: The Center Console Help

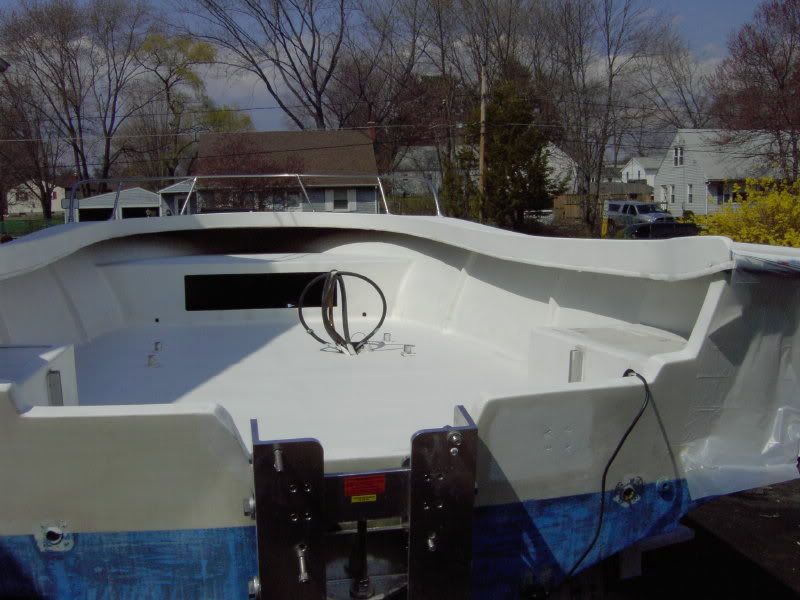

We got a ways on refinishing the insides I started to patch all the screw holes with Marine-Tex only have a few more to go. The starboard will be ready tommorrow. We removed everything from the inside It was easy, look how hacked up the console is. You can see the new jack plate too...Ted

Re:  Center Console Help W/PICS


http://i15.photobucket.com/albums/a3...PDR_0214_1.jpg http://i15.photobucket.com/albums/a3...PDR_0213_1.jpg

Re: The Center Console Help/PICS NOW


http://i15.photobucket.com/albums/a3...PDR_0212_1.jpg *http://i15.photobucket.com/albums/a3...PDR_0211_1.jpg

Re:  Center Console Help W/PICS


Blu, once you get that console finshed and resurfaced w/Starboard, it'll look like brand new...if it was me, I'd pull the wheel and 1/2" Starboard over that entire surface...

And that jackplate gives you an opportunity to extend the height of your transom to keep those ''hi-rollers'' out of the back 8)

Oh yeah...GREAT PICS!! ;D ;D 8)...

Re:  Center Console Help W/PICS


Yea that dash needs to be pimped with starboard!!

But before you screw it all down try the steering wheel to see that you have 1/2" extra for the shaft and then the wheel??

Might not have the clearance? I had a problem on another boat with that. Had to cut a hole in the center for steering so it would fit.

Re:  Center Console Help W/PICS


Router? I thought that's what sandpaper was for ::)

Cheating wussies! :P

Re:  Center Console Help W/PICS


MJ, I think Blu's plan is to cut a large rectangle out of the fiberglass console just an inch or two smaller in dimension than the Starboard will be. That way all his controls will only be set into 1/2" thick material. Not the 1/2" of Starboard plus the remaining fiberglass.

Re:  Center Console Help W/PICS


With all that support gone, wonder if he doesn't need to use 3/4" S-board...thinkin' about the steering wheel out in the middle of the panel w/only 1/2'' of support...doesn't SOUND stiff enough... :)...

Oh, and BR...damn right a router!! ;) ;D...

Re:  Center Console Help W/PICS


The local marina here also said 1/2 is more than strong enough. I spent the afternoon sanding Marine-Tex once I get the paint on the deck the holes will be impossible to see they are nice and flush now....

Re:  Center Console Help W/PICS


well we told you that, what you no trust us?? :'(

Re:  Center Console Help W/PICS


The parts guy said 1/2 is strong to hold me { I'm 6 foot 4 1/2 340 lbs} I thought about it after reading the posts this afternoon I'm only going to remove the area above the helm for the gauges and breaker box with switches. Nearly finished with the screw hole repairs in the hull I ran out of Marine-Tex yesterday and had to finish today I only have about 10 holes left to sand. I started to sand and clean up the console, tommorrow I am going to get the hull washed out and de-waxed I want to primer it Friday.....I keep you posted.....Ted

Re:  Center Console Help W/PICS


Blu, there's no question the 1/2'' will "hold" it if you took out all the panel...but there are some things that have a better ''feel'' to them w/ more support and for my money, a steering wheel is one of them... ;)...I think you're doin' the right thing by leavin the bottom of the panel in... :D...

Re:  Center Console Help W/PICS


It's ready for paint every hole is fixed used Interlux 202 solvent for fiberglass washed the entired area where we are primering Saturday and the first coat of paint Sunday it's clean as a whistle......I'll put pics up Saturday....Ted

Re:  Center Console Help W/PICS


Can't wait to see it...you're doin' a great job on it!! ;D

Re:  Center Console Help W/PICS

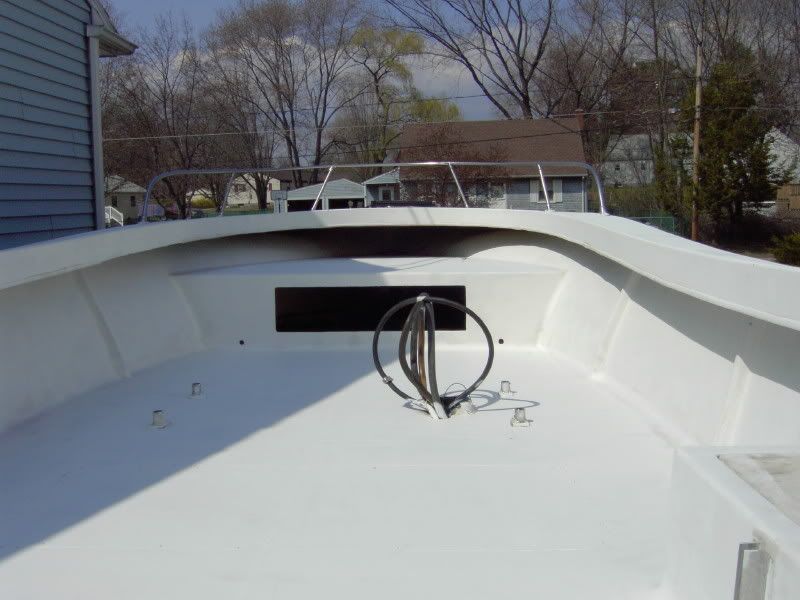

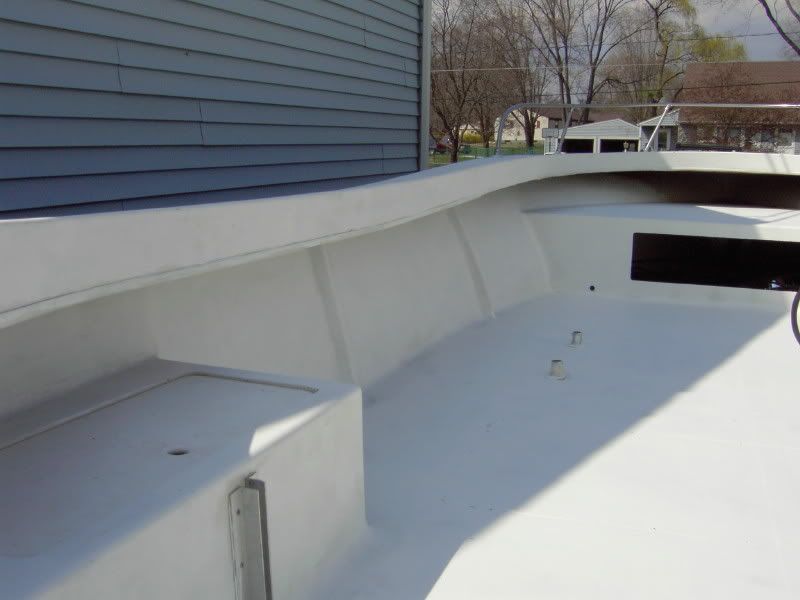

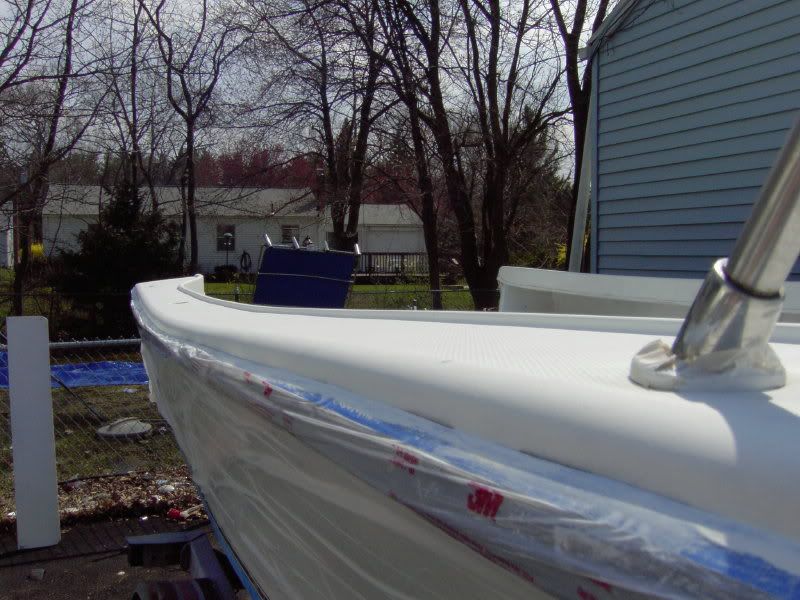

Lot of work done today we primered everything it took 2 quarts going to do the first coat of paint tommorrow, the last picture yuo can see the nice top that came with the boat....Ted

Re:  Center Console Help W/PICS


http://i15.photobucket.com/albums/a3...PDR_0216_1.jpg http://i15.photobucket.com/albums/a3...PDR_0217_1.jpg

Re:  Center Console Help W/PICS


http://i15.photobucket.com/albums/a3...PDR_0218_1.jpg http://i15.photobucket.com/albums/a3...PDR_0219_1.jpg

Re:  Center Console Help W/PICS


Re:  Center Console Help W/PICS


Lookin' good, Blu...lookin' good...you do good work ;)...keep those pics comin'...this is fun!!...

Re:  Center Console Help W/PICS


I know this Pettit Easypoxy sure got some nasty odor to it. Your right I'm enjoying do this project I'll post some more pic tommorrow ....Everybody have a safe enjoyable Easter Holiday....Ted

Re:  Center Console Help W/PICS


Looking good Blu. That Pettit primer. Is that a two part epoxy ?? That Marine tex. Is that the white putty looking stuff ??, I have a bunch of snap rings that use to be for some kind of cover. I wanted to pull all the snaps off and fill the holes. Sounds the the marine tex is easier then grinding down each hole, laying cloth then filling with filler.

Re:  Center Console Help W/PICS


The primer is 1 part a single can. The Marine-Tex is white but comes in grey also that is 2 part, the small screw holes I just filled the larger ones I backed with a piece of styrene it cures hard as glass but sands like wood. I liked it. It sure was nice to see all the holes disappear with the primer coat.....

Re:  Center Console Help W/PICS


Thanks Blu. ;D

Re:  Center Console Help W/PICS


Put the first coat of paint this morning looks good, the first picture has my son Ted he's 27 and painted the whole insides
