Installing NFB Steering Helm


Hey guys,

I'm to the point where I've removed the old hydraulic steering and have run the new steering cable through the gunwale. *

As I was getting ready to install the bezel and the helm, I noticed that the existing hole from the previous helm is too big for the new one. *I have to make the hole smaller. *What should I do? *I know one option would be to glass in the hole with plywood, but would that be smart? *All of the stress from the new helm would be placed right within the patch area. *Should I consider glassing along with a piece of aluminum going across that whole face of that section where the steering wheel goes? *

Here's the hole as it exists now:

http://i50.photobucket.com/albums/f3...g/100_1303.jpg

Re: Installing NFB Steering Helm


Grace, Hmmm - thats a tough one. An easy solution hasnt come to me yet - maybe someone else will figure it out. The way I see it - you would have to pull the whole dash console off. I would make a round disc of wood that is a tight fit to the existing hole. Then I would securely attach that to a backer plate. Then, the backer plate could be securely fastened to the inside of the dash console. Lag screws, epoxy and glass, etc for the secure fastening. Good luck.

Re: Installing NFB Steering Helm


Can you just use a thick piece of starboard ???

Re: Installing NFB Steering Helm


Hammer has the answer

Re: Installing NFB Steering Helm


Thanks guys!!! Starboard it is--easy enough...

Re: Installing NFB Steering Helm


BGO, here's another possibily. Teleflex has excellent customer sercive. I'd bet if you call and ask that they have an adapter of some sort that will make your installation a bolt in. Probably even cheaper than Starboard and might look pretty slick.

Airslot

Re: Installing NFB Steering Helm


If Teleflex doesn't come through, how about a nice piece of round teak bigger than the hole???


something like this;

http://img.photobucket.com/albums/v2...sMako23006.jpg

Re: Installing NFB Steering Helm


3/4 Starboard will be more then anough and will last 10 lifetimes!!

Re: Installing NFB Steering Helm


bygrace i've got what you need will get pics tomorrow. it's a steering adapter for your app. send a pic of the steering to my email of your steering pump you took out and a pic of the new steering box i'll see which adapter you need have a box of new ones.

Re: Installing NFB Steering Helm


Thanks Skools!!! I'll send the pics tomorrow.

Re: Installing NFB Steering Helm


Hey Tin, Where did that pic come from ? Man - that is a thing of beauty !!! Wow !

Re: Installing NFB Steering Helm


That's a guy over at classic mako, goes by the name Annie II. It's a 1973 23' Mako (Annie III) he just finished. The guy is a real craftsman. Last year he finished Annie II, another beauty.

Here you go:
http://classicmako.com/forum/topic.a...mp;whichpage=1

Re: Installing NFB Steering Helm


This might work for ya. Cheap Price to.

http://cgi.ebay.com/ebaymotors/3-4-x...QQcmdZViewItem

Re: Installing NFB Steering Helm


If you like the wood and the up keep, that is a great piece Tin!!
I hate the work of wood and have removed all!

But I am jelious of the guys that have it cause it looks so good!

Re: Installing NFB Steering Helm


That is one fine console!


Of course my wife tells me that all the time. ::)

Re: Installing NFB Steering Helm


what size does the hole measure you have? i have alot of new brackets but need to know the current hole size i could weld you some longer ears on a kit so you wouldn't need to do any rigging.

Re: Installing NFB Steering Helm


also tell me the old mounting hole distances for the 4 holes i'll build you a mount bracket.

Re: Installing NFB Steering Helm


Here you go Skools:

http://i50.photobucket.com/albums/f3...einconsole.jpg

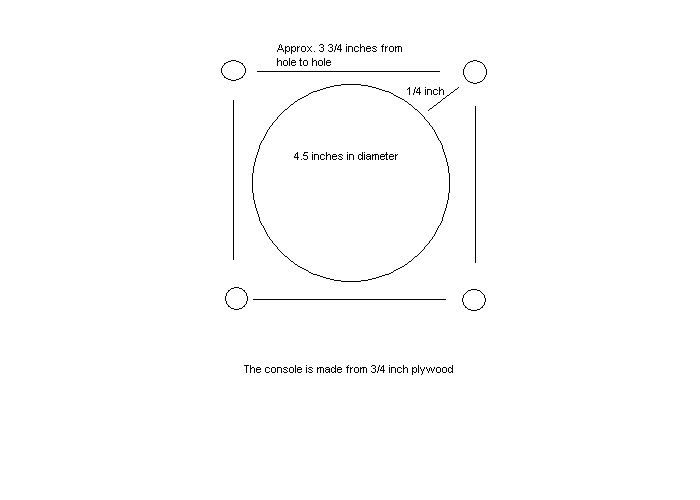

The measurement from hole to hole is not from center to center of the holes, but from the inner edge to the inner edge of the holes. *Let me know if you'd like me to remeasure from center to center.

Also, a correction: the plywood is 5/8" not 3/4"...

Thanks buddy!

Re: Installing NFB Steering Helm


Yo Skool,
While your making stuff for Bygrace, make me a hard top brother. ;D ;D ;D

Re: Installing NFB Steering Helm


ok lol buy me a new tig welder and i'll build anything you wish lol

Re: Installing NFB Steering Helm


skools ,gotta welding question for ya..my buddy has got a 92[?] 115 yammi, great motor except for a crack that has developed on the lower unit. Right where the front of the prop meets the lower unit, at about a 10:00 position, a crack started last year and now has moved at least an inch and1/4 foward. I think it's passing a little exhaust thru the crack because last time out on it I said it sounded different. Can something like that be welded or marine texed or JB 'd ?? Whattaya think???

Re: Installing NFB Steering Helm


you can stop the crack from moving anymore by drilling a hole in the end of the crack so it can't run any more. doesn't need to be very big just wider than the crack. then just fill with JB Weld you should be fine. That's an Old trick to do on circuit boards when they crack and it works well on metal too.

Re: Installing NFB Steering Helm


I'll pass that info along to him, thanks skools

Re: Installing NFB Steering Helm


Start to build part that arrived today

http://i8.photobucket.com/albums/a46...r/MVC-121S.jpg

After cutting out 5/8 in, welding flanges, and getting ready to be mounted under the dash for thru bolting

http://i8.photobucket.com/albums/a46...er/MVC-123.jpg

http://i8.photobucket.com/albums/a46...er/MVC-124.jpg

http://i8.photobucket.com/albums/a46...r/MVC-125S.jpg

http://i8.photobucket.com/albums/a46...r/MVC-126S.jpg

http://i8.photobucket.com/albums/a46...r/MVC-127S.jpg

testing to make sure all fits.

http://i8.photobucket.com/albums/a46...r/MVC-122S.jpg

http://i8.photobucket.com/albums/a46...r/MVC-116S.jpg

http://i8.photobucket.com/albums/a46...r/MVC-117S.jpg

http://i8.photobucket.com/albums/a46...r/MVC-118S.jpg

http://i8.photobucket.com/albums/a46...r/MVC-119S.jpg

http://i8.photobucket.com/albums/a46...r/MVC-120S.jpg

Re: Installing NFB Steering Helm


Skools,

I can't believe how quickly you did that! You just received the part today for crying out loud :o

Looks great bud.

Re: Installing NFB Steering Helm


i painted with galv coat then coated with black laqr paint. Currently drying and will get needed bolts tomorrow and send back with bolts 2 plastic housings and new stainless steering arm.

Re: Installing NFB Steering Helm


Great Job!!!!!!!!!!!!!!!!!!!!!

Re: Installing NFB Steering Helm


WOW, Skools!!...great job!!... 8) ...

Re: Installing NFB Steering Helm


Thanks Guys just keep the fingers crossed that it works.

Re: Installing NFB Steering Helm


Yea he might get in the water turn the wheel and the weld break!! Then he have no steering and the cops pull!! LOL

I am sure it will be fine and out last the boat!

Re: Installing NFB Steering Helm


ok here's what all i'm sending back

http://i8.photobucket.com/albums/a46...r/MVC-141S.jpg

Here's your original trim cover with long stainless screws for prethreaded holes in bracket

http://i8.photobucket.com/albums/a46...r/MVC-134S.jpg

New made steering bracket

http://i8.photobucket.com/albums/a46...r/MVC-135S.jpg

New Stainless Stering arm you needed with all nuts and washers plus tention spring

http://i8.photobucket.com/albums/a46...r/MVC-136S.jpg

New Factory Steering bracket in case new one doesn't fit and new bigger steering trim cover
PS i'd use this trim cover it will cover better.

http://i8.photobucket.com/albums/a46...r/MVC-137S.jpg

New Stainless Thru bolt parts 4 Stainless 5/16 Carriage bolts, 4 stainless washers, and 4 stainless nylon locking nuts.

http://i8.photobucket.com/albums/a46...r/MVC-138S.jpg

Notice i polished the bolt heads so they look better on the top of your dash.

http://i8.photobucket.com/albums/a46...r/MVC-140S.jpg


Just remember the new bracket mounts under the dash and then thru bolt from top with these new stainless bolts and trim cover will bolt threw the old steering hole. I hope this works and is that all you needed? Going out tomorrow via Priorty Mail.

Re: Installing NFB Steering Helm


oh yeah i looked in the box of steering nuts and found a box full of the ones for the steering box you sent. Thanks Again Todd

Re: Installing NFB Steering Helm


bygrace; how awesome is this guy? ;D 8) 8) 8)

You're a good man Skools. 8)

Re: Installing NFB Steering Helm


You ain't kidding CB!

Skools has been a great friend. In fact, he's gone above and beyond anything I deserve. I've thanked him offlist, but I think it's worth saying publicly as well. Thanks buddy!!!

Re: Installing NFB Steering Helm


Anytime Brother *8)

Now I only hope it fits and works. Hard to build stuff for projects 500 miles away lol. I built 2 steel bridges for my garden railroad at the beach here on just some measurements. They both fit perfect hope this does too. The bridges wouldn't have been to bad except they *both were 4 ft and 7.5 ft curved 1 on one end and 1 in the center. They are 200 miles away.
